CDLF8/16



●Water supply:water filtering and water delivery in water plants,water delivery for sub-water plants,pressure boost in main pipelines and in high-rise buildings.
●Industrial pressure boost:flow water system,cleansing system, High-pressure washing system,fire extinguishing system.
●Industrial liquid delivery:cooling and air-conditioning systems,boiler water supply,condensation system,machine tool,transmission of the acid and alkali mediums.

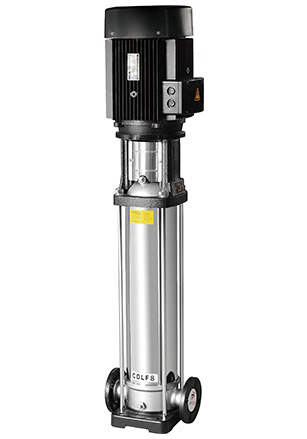

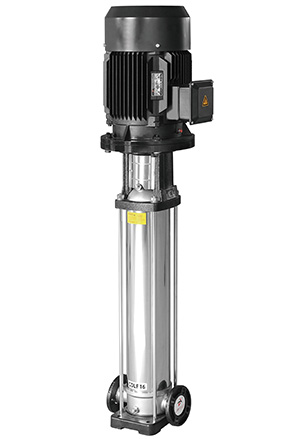

CDLF-8 CDLF-16

●Liquid temperature:Normal type 0℃~ +68℃，hot water type 0℃~ +120℃.
●Ambient temperature:-15℃~ +40℃.
●The maximum inlet pressure:1.0Mpa/10Bar.
●When the density or viscosity of the transmission medium exceeds that of water,it is necessary to select to a driving motor of high-power.
●Irrigation:irrigating of crops,spray irrigation and irrigation.
●Pump head:Cast iron/ Stainless Steel.
●Pump shaft&motor shaft:Stainless steel AISI304.
●Coupling :Carbon steel/stainless steel.
●Inlet and outlet chamber:Stainless steel AISI304.
●Impeller: Stainless steel AISI304.
●Diffuser: Stainless steel AISI304.
●Full-enclosed and ventilating two-pole standard motor.
●Protection class: IP55.
●Insulation class: F.
●Standard voltage/Frequency:Single phase/Three phase; 50Hz/60hz.





TECHNICAL DATA

Model
Power

Flange Size

Q M/h

5

 6 7 8 9 10 11 12 N.W (kg)

HP

kW
CDLF8-3
1.5
1.1
2"
H(m)
30
29.5
28.5
27
25
24
21
19
34
CDLF8-4
2
1.5
41
39.5
38
36
34
32
28
26
40
CDLF8-5
3
2.2
52
50
48
45
42
40
36
32
44
CDLF8-6
3
2.2
62
60
57
54
51
48
43
39
45
CDLF8-8
4
3
83
80
77
70
69
65
58
52
53
CDLF8-10
5.5
4
104
100
97
92
87
81
73
65
64
CDLF8-12
5.5
4
118
114
109
105
98
89
84
77
66
CDLF8-14
7.5
5.5
145
141
136
130
122
113
102
92
81
CDLF8-16
7.5
5.5
166
161
156
148
139
130
118
106
84
CDLF8-18
10
7.5
187
182
175
167
157
146
134
120
93
CDLF8-20
10
7.5
208
202
195
186
175
163
150
135
94

Model
Power

Flange Size

Q M/h

8

 10 12 14 16 18 20 22 N.W (kg)

HP

kW
CDLF16-2
3
2.2
2"
H(m)
27
26
25
24
22
21
19
16
42
CDLF16-3
4
3
41
40
38
37
34
32
29
25
50
CDLF16-4
5.5
4
54
53
52
49
46
43
38
34
59
CDLF16-5
7.5
5.5
68
67
65
62
58
53
48
43
76
CDLF16-6
 7.5
35.5
82
80
78
73
70
64
58
52
77
CDLF16-7
10
7.5
96
95
91
87
82
76
68
61
84
CDLF16-8
10
7.5
110
108
104
99
94
86
77
70
86
CDLF16-10
15
11
138
136
131
125
118
109
97
87
158
CDLF16-12
15
11
166
162
157
150
141
130
116
105
161
CDLF16-14
20
15
194
190
184
175
166
152
136
122
174

Model
Power

Flange Size

Q
M/h

10

 12 14 16 18 20 22 24 26 28 N.W (kg)

HP

kW
CDLF20-2
3
2.2
2"
H(m)
27
26.5
26
25
24
23
22
20
18
15
42
CDLF20-3
5.5
4
40
39.5
39
38
37
35
33
30
27
24
58
CDLF20-4
7.5
5.5
54
53
52
51
49
47
44
41
37
33
74
CDLF20-5
7.5
5.5
67
66
64
62
60
58
55
50
45
40
76
CDLF20-6
10
7.5
81
79
77
75
73
70
66
61
55
49
82
CDLF20-7
10
7.5
95
93
91
89
86
82
77
71
65
58
84
CDLF20-8
15
11
109
107
105
102
99
94
89
82
75
67
153
CDLF20-10
15
11
136
134
131
128
124
118
111
103
95
85
157
CDLF20-12
20
15
164
162
158
154
149
142
133
124
114
102
170
CDLF20-14
20
15
192
189
185
180
174
166
156
145
133
119
172

Model
Power

Flange Size

Q M/h

16

 20 24 28 32 36 40 N.W (kg)

HP

kW
CDLF32-2
5.5
4
3"
H(m)
36
34
32
29
27
23
18
85
CDLF32-3
7.5
5.5
54
51
48
44
39
35
27
100
CDLF32-4
10
7.5
72
68
65
59
53
47
37
109
CDLF32-5
15
11
90
86
81
74
67
59
47
181
CDLF32-6
15
11
108
102
97
90
81
72
57
185
CDLF32-7
20
15
126
120
113
105
95
84
67
199
CDLF32-8
20
15
144
137
129
120
109
97
76
203
CDLF32-9
25
18.5
162
154
146
136
123
109
86
222
CDLF32-10
25
18.5
180
171
162
151
137
121
96
227
CDLF32-11
30
22
198
188
178
166
151
134
105
272
CDLF32-12
40
30
216
205
194
182
165
146
115
276
CDLF32-13
40
30
234
222
211
197
179
158
125
337

Model
Power

Flange Size

Q M/h

25

 30 35 40 45 50 55 N.W (kg)

HP

kW
CDLF45-2
10
7.5
3.25“
H(m)
48
46
44
42
39
35
31
110
CDLF45-3
15
11
71
69
66
63
58
53
47
183
CDLF45-4
20
15
95
92
88
84
77
71
62
197
CDLF45-5
25
18.5
118
115
110
105
97
89
78
221
CDLF45-6
30
22
142
138
132
125
116
107
93
261
CDLF45-7
40
30
165
161
154
146
135
125
109
320
CDLF45-8
40
30
189
184
176
167
154
143
124
324
CDLF45-9
50
37
212
207
198
188
174
161
140
352
CDLF45-10
50
37
236
230
220
209
193
179
155
355
CDLF45-11
60
45
259
253
242
230
213
197
171
426

Model
Power

Flange Size

Q M/h

25

 30 35 40 45 50 55 N.W (kg)

HP

kW
CDLF64-2
15
11
4"
H(m)
53
51
47
43
39
37
30
182
CDLF64-3
15
18.5
80
76
71
65
60
56
46
221
CDLF64-4
30
22
107
101
94
87
81
75
61
258
CDLF64-5
40
30
135
128
119
109
103
94
78
319
CDLF64-6
50
37
164
156
144
132
124
114
95
349
CDLF64-7
60
45
193
184
170
155
146
135
112
420
